FC7150U Counter and Alinco DJ-G7 on 1,294.50 MHz

I got an EZ-Digital FC7150U counter on eBay from athomemarket and used my Trimble Thunderbolt as a 10MHz reference. To the C (prescaler) input, I attached a high-UHF rubber duck antenna that Norm K6NPB gave me.

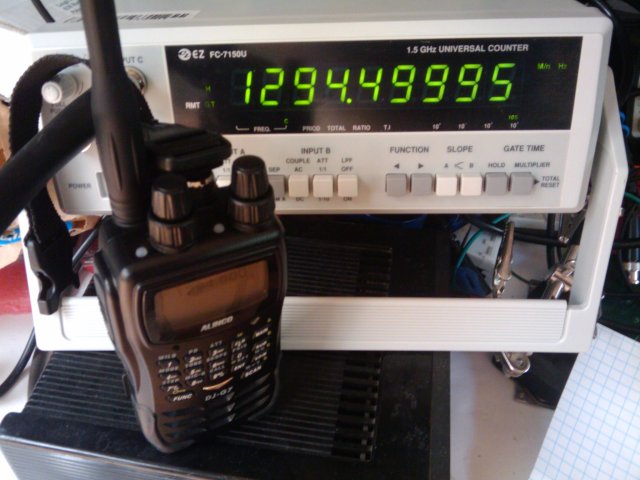

I keyed up my Alinco DJ-G7 on 1295.50 MHz and let it gate for 10 seconds, being quiet as I could to avoid frequency modulation. The frequency it read over the 10 second period was 1,294.49995 MHz, or 1,294,499,950 Hz with a precision of +/-10Hz.

My Photos

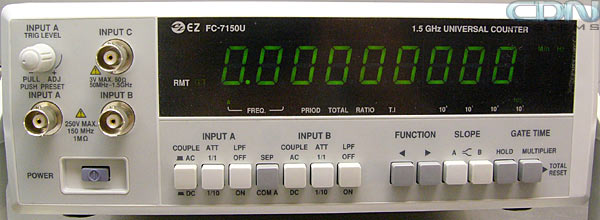

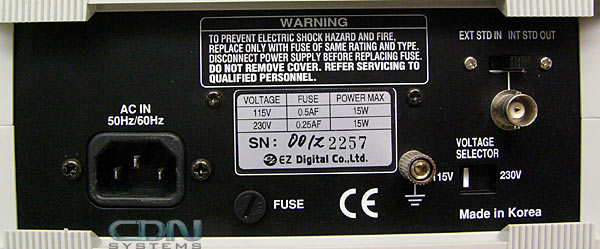

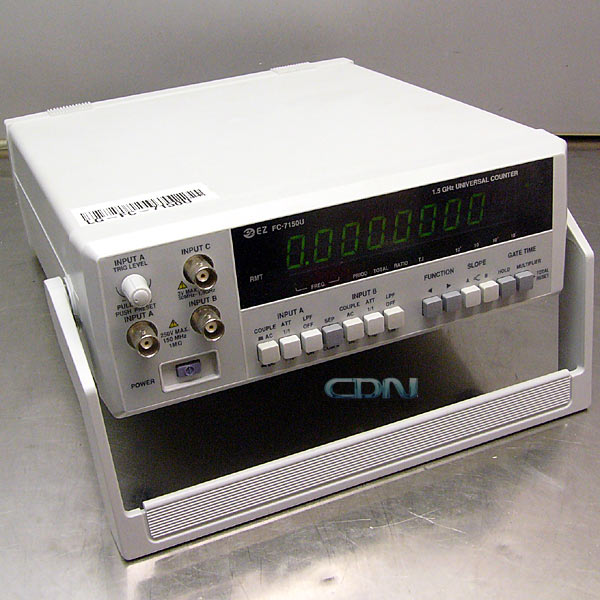

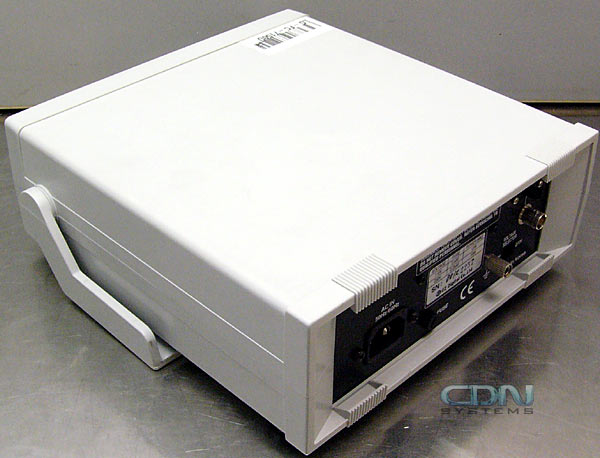

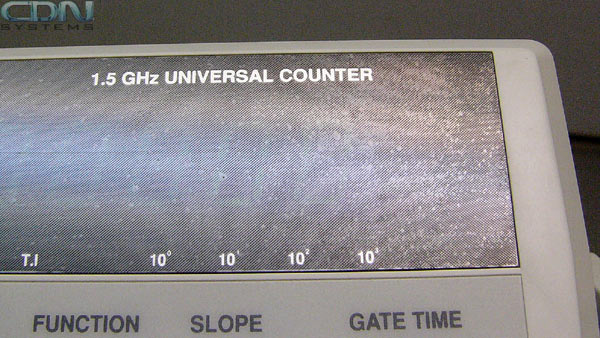

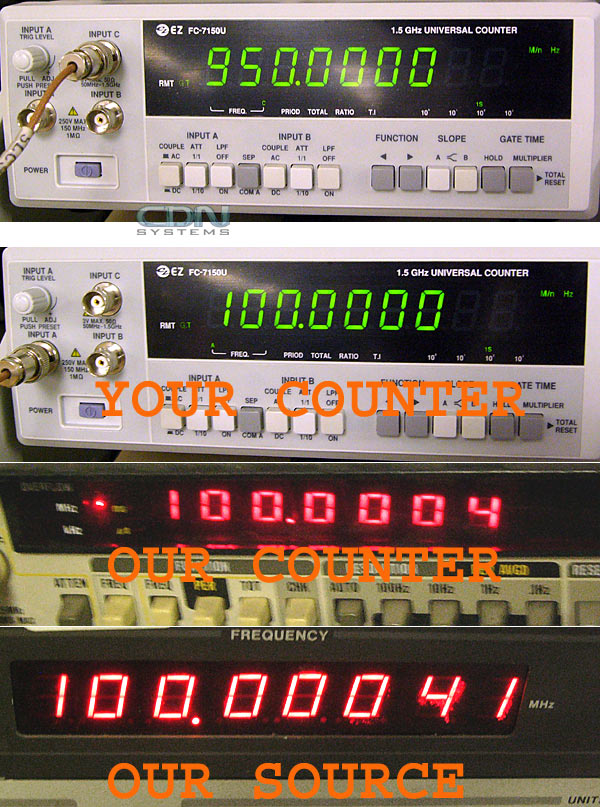

Photos from eBay seller athomemarket
