How High Can You Go?
AM and CW on 474 Thz
Leigh Klotz WA5ZNU
, <
leigh@wa5znu.org
>
Hit the space bar for next slide
How High is 474 THz?
144-148 Mhz is 2 meters
802.11b WiFi is 2.4 Ghz, or 2400 MHz is 12.5cm (also a ham band)
Police Radar and Motions Detectors are 10 Ghz, 3cm (also a ham band)
Around 30 Ghz (1cm), neutral gas in the atmosphere has significant attenuation
47 Ghz (0.6cm) (also a ham band): millimeter waves begin about here
300 Ghz (1mm) -- no licenses from here on up; severe attenuation
10 Thz (0.01mm) -- Far InfraRed or Sub-Millimeter; attenuation slackens
60 Thz-300 Thz (5uM to 1uM) -- Infrared, with peaks and valleys of attenuation
400Thz - 1000Thz (0.75uM - 0.10 uM) -- magic rainbow of atmospheric transparency
400 Thz (0.75uM = 750nM) -- we call this "red"
474 THz (632 nM) -- Helium-Neon red lasers
440-480 THz (625-680 nM) -- cheap read laser diodes

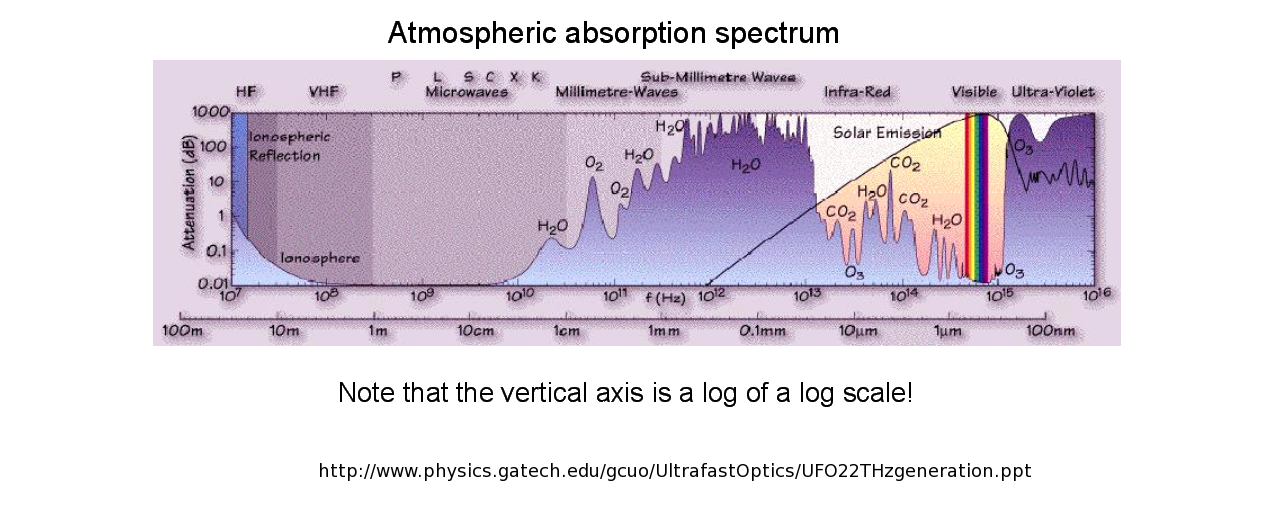

Atmospheric Absorption
The magic rainbow is visible light.
It also corresponds to the maximum solar energy output,
and to a dip in atmospheric absorption
Projects

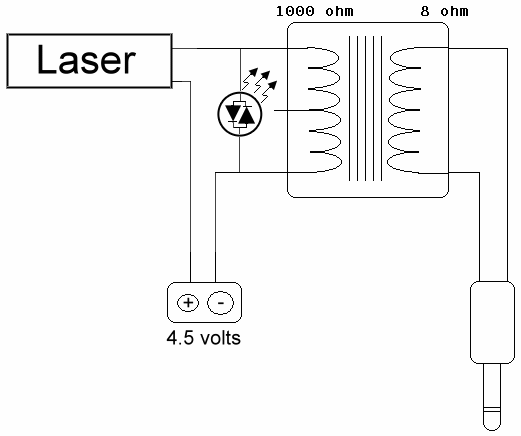

http://sci-toys.com/scitoys/scitoys/light/laser_transmitter.gif
http://www.instructables.com/id/Send-Music-over-a-Laser-Beam
